How Proofterior Treated Rising Damp and Penetrating Damp in a Southampton Home
When a Southampton homeowner noticed persistent low-level damp patches spreading across the living room and kitchen walls, a professional damp survey by Proofterior identified not one but three compounding moisture problems working simultaneously. This case study explains what was found, how the Proofterior Dry System resolved it, and why this combined damp scenario is one of the most frequently mismanaged situations in Hampshire properties.
Diagnosing Combined Rising Damp and Penetrating Damp in Southampton

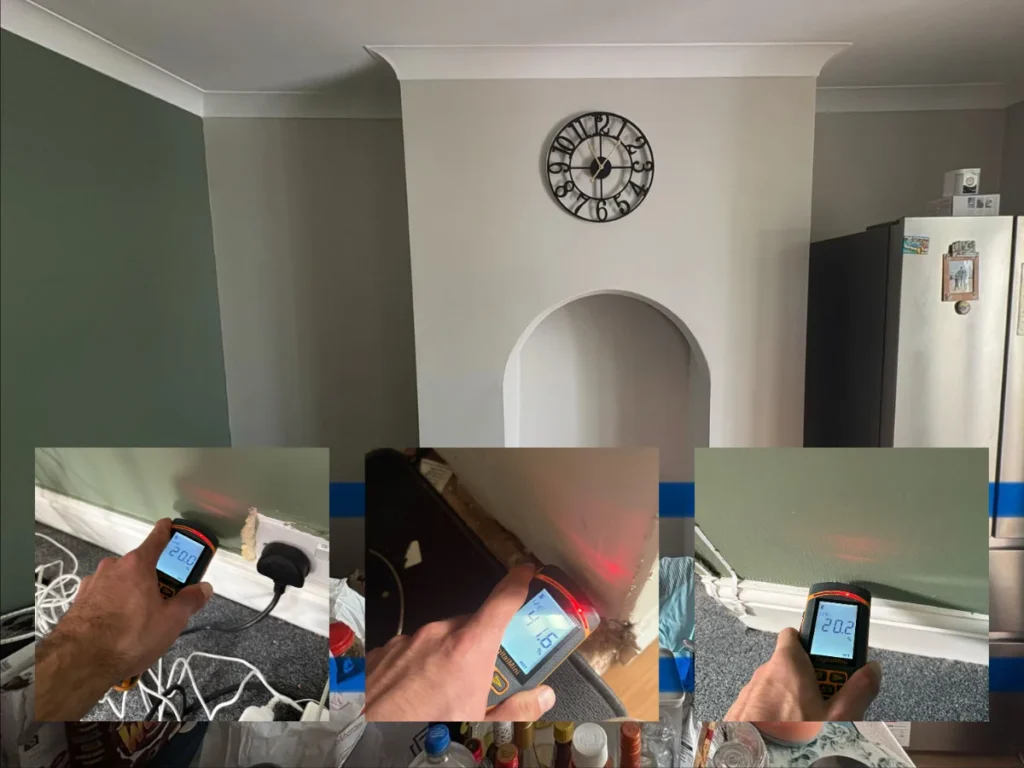

At this Southampton Property, Proofterior’s ISSE-accredited survey identified three active moisture pathways working together. Moisture meter readings confirmed active damp up to approximately 1.5 metres from floor level across living room and kitchen elevations, with salt contamination in the plaster confirming sustained, long-term moisture activity consistent with rising damp via a failed or bridged damp proof course. Cavity bridging from mortar debris at low level was also identified, creating a direct route for moisture to bypass the cavity and penetrate the internal leaf. Defective external pointing and porous masonry on the corresponding elevations added a third mechanism, allowing rain-driven penetrating damp into the wall fabric from outside.
Subfloor ventilation to the affected elevations was also inadequate. Air bricks were either too low, insufficient in number, or partially obstructed, meaning poor cross-flow ventilation beneath the suspended timber floors was sustaining elevated moisture at the critical wall and floor junction. This combination confirmed that a single-fix approach would not work. Proofterior specified a fully integrated treatment addressing all three mechanisms simultaneously.
Objective: Permanently Arrest Every Moisture Pathway
The goal for this Southampton damp proofing project was to permanently interrupt all identified moisture pathways and restore dry, stable walls suitable for long-term redecoration. Salt-contaminated plaster left in place, even after a new DPC is installed, acts as a hygroscopic reservoir that continues drawing atmospheric moisture and causes recurring damp staining on any new finish. The correct solution was the Proofterior Dry System, a coordinated internal treatment combining plaster removal, cavity clearance, chemical DPC injection, salt neutralisation, damp proof membrane installation, and full replastering, paired with external repointing and Masonry Protection Cream application, all backed by a 25-year guarantee.
Step-by-Step Proofterior Dry System Treatment Process
1. Hack-Off, Cavity Clearance and Substrate Preparation
All contaminated and damp-affected plaster was removed from the living room and kitchen walls to approximately 1.5 metres, extending at least 300mm above the last visible signs of damp or salt contamination to fully expose the underlying masonry. Where accessible at low level, cavity bridging debris including mortar droppings and rubble was cleared from within the wall cavity to eliminate the physical moisture pathway between the outer and inner leaf. The exposed brickwork and blockwork was then mechanically cleaned by scraping and wire brushing to remove loose salts and weak material, preparing a sound substrate for treatment.
2. Chemical DPC Injection and Salt Neutralisation
A new chemical damp proof course was installed by injecting a silicone-based cream at calculated centres into the appropriate mortar bed along the affected elevations, forming a continuous water-repellent horizontal barrier that stops capillary moisture rise from ground level. Following injection, a salt-neutralising treatment was applied to the exposed masonry to stabilise and neutralise the chloride and nitrate salts carried up by the rising damp. This step is essential to prevent residual salts from reactivating after drying and drawing atmospheric moisture back to the wall surface, which would cause recurring damp staining on new plaster finishes even after active water ingress has been stopped.

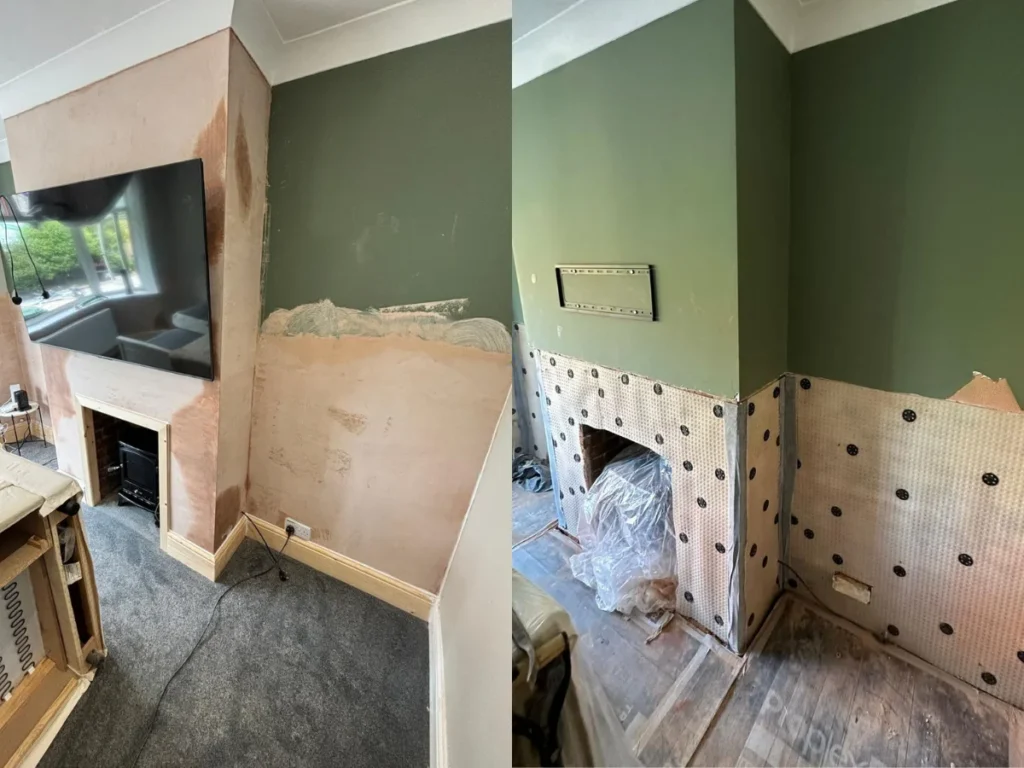

3. Damp Proof Membrane Installation Where Required

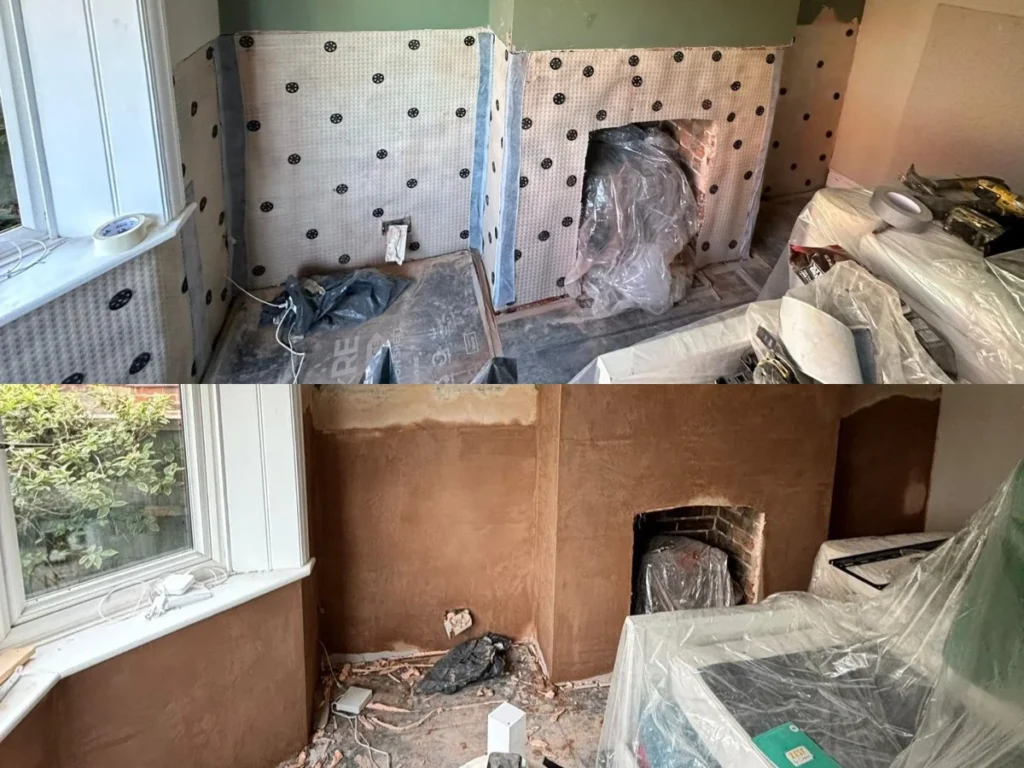

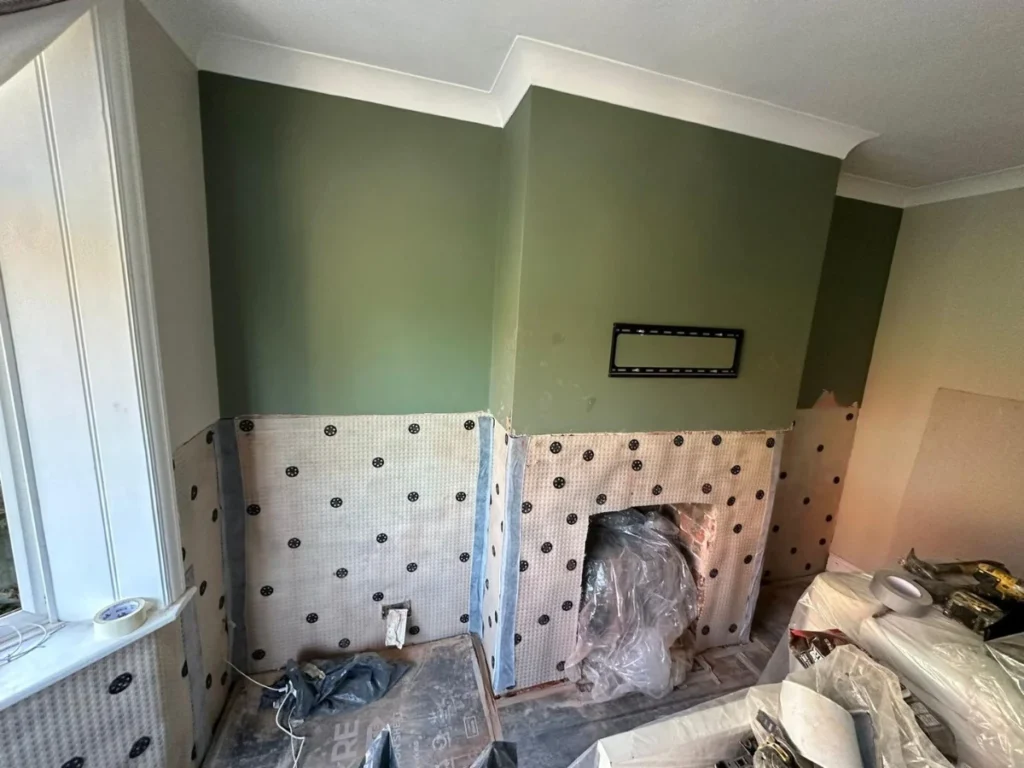

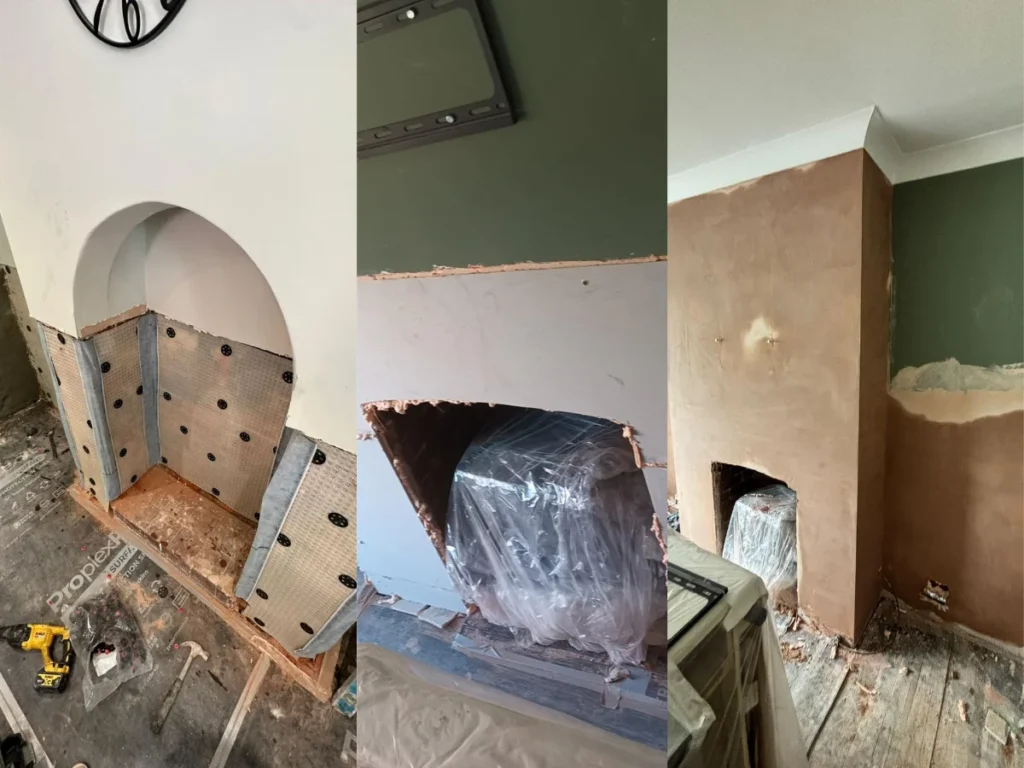

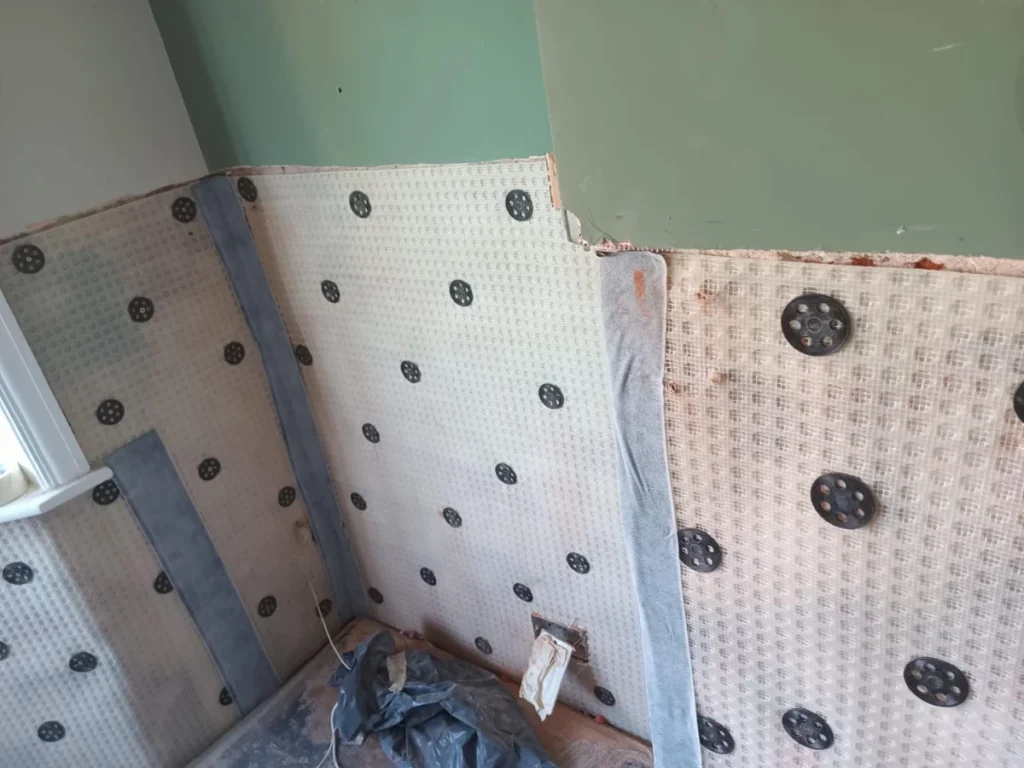

On the most affected wall areas, a studded or meshed plastic damp proof membrane was mechanically fixed to the treated masonry to create a ventilated gap between the old wall surface and new internal finishes. This physical barrier provides an additional layer of protection against any residual moisture or salts within the masonry, ensuring a guaranteed dry face for replastering regardless of the drying timeline of the underlying wall. This step is particularly important in Southampton properties where walls have been subject to prolonged combined moisture exposure and the masonry may take an extended period to fully stabilise.

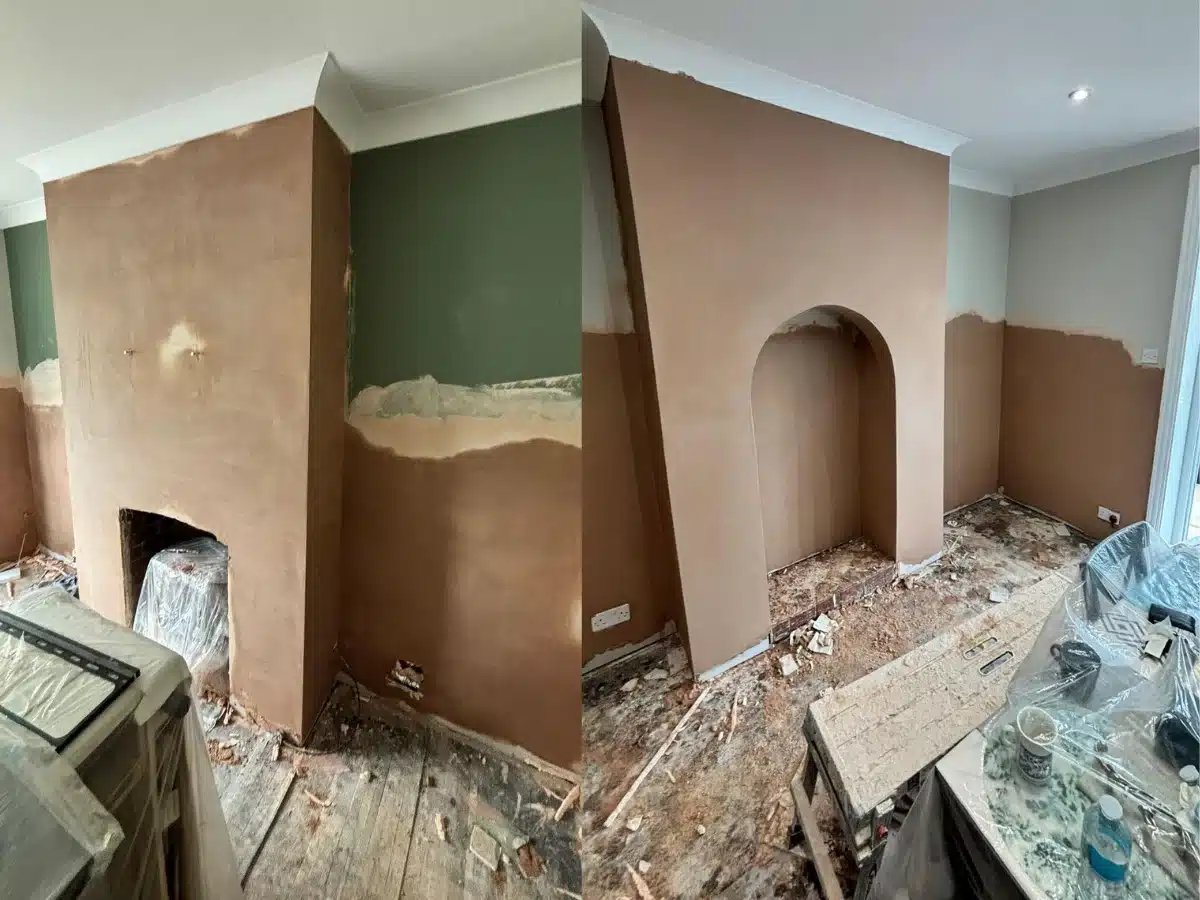

4. Replastering, Reinstatement and Air Brick Upgrades

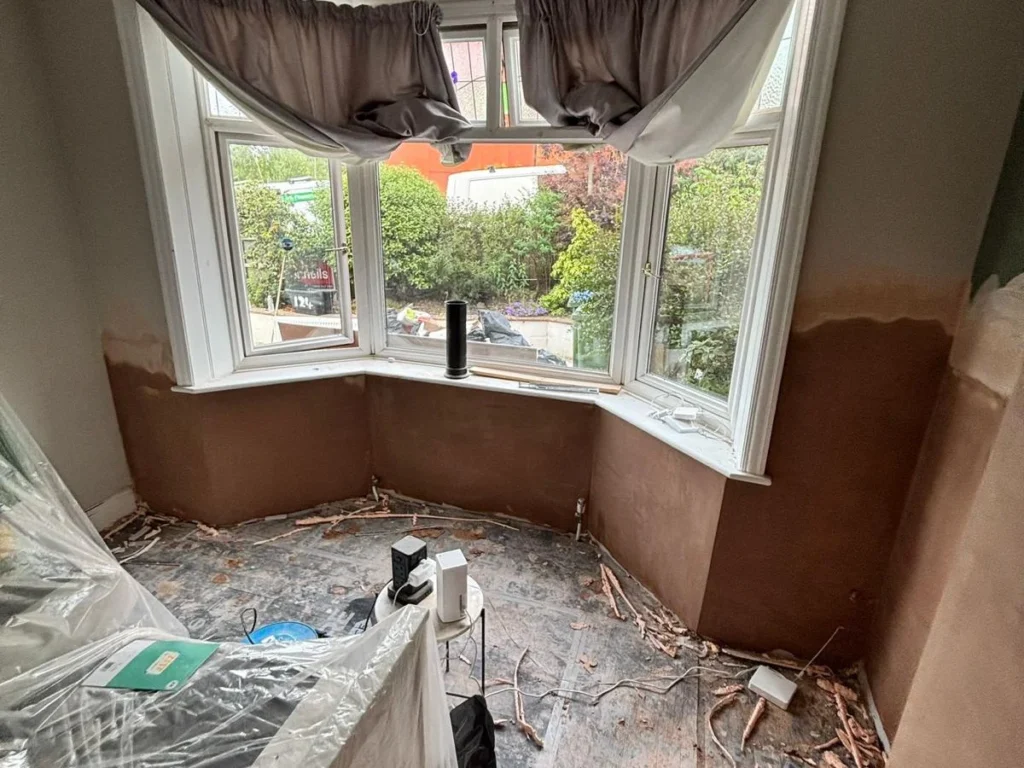

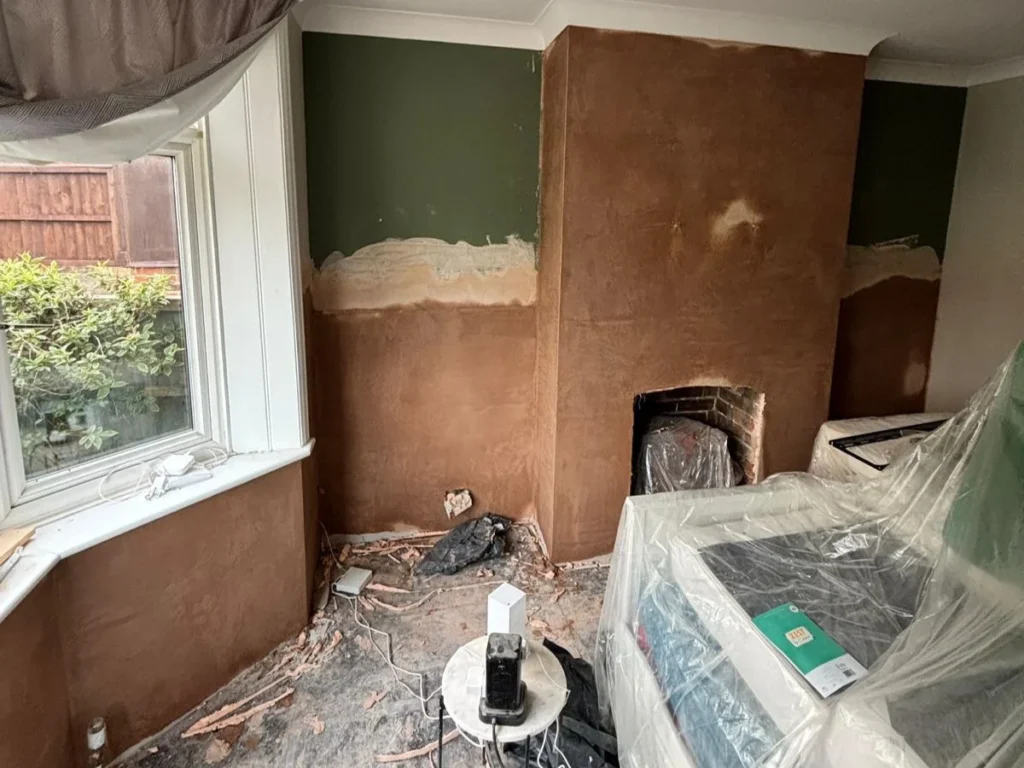

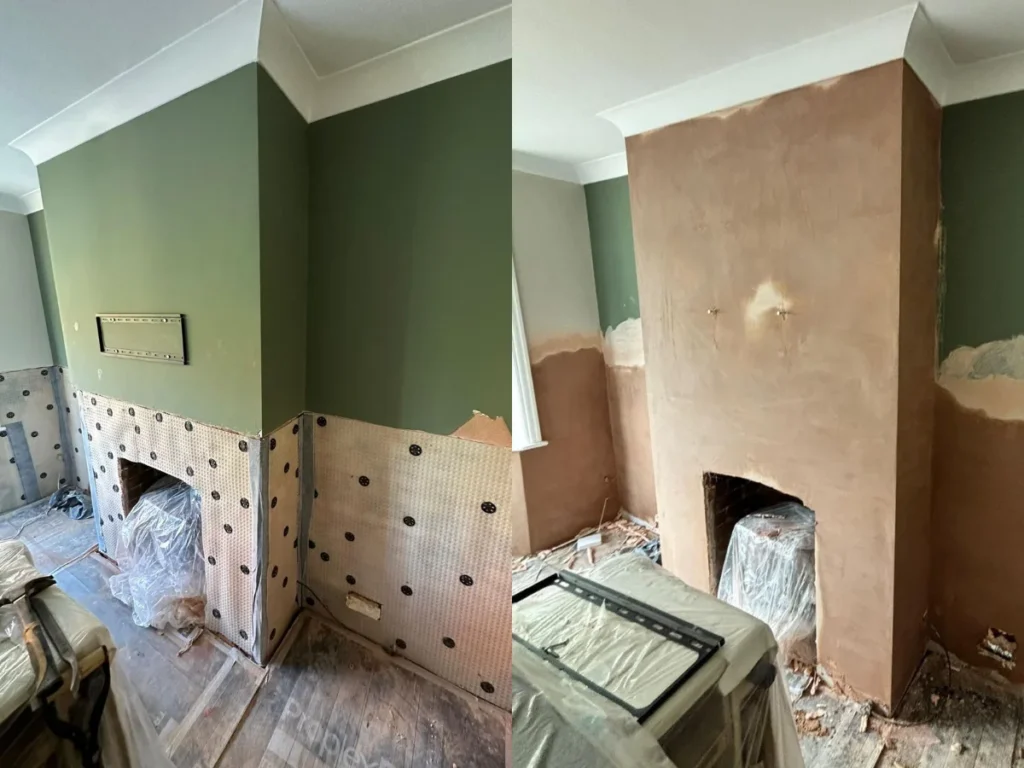

Wall surfaces across the treated areas were rebuilt using a backing plaster or plasterboard system compatible with the DPC and DPM, followed by a smooth skim coat to leave all walls decoration-ready. Skirting boards, electrical sockets, faceplates, and radiators were removed as required to facilitate the works and fully reinstated on completion to restore functionality and a professional finish. Air bricks to the affected elevations were raised or supplemented where ground levels had built up or where ventilation cross-flow was insufficient, ensuring proper airflow beneath the suspended timber floors and lowering sustained moisture levels at the critical wall and floor junction.

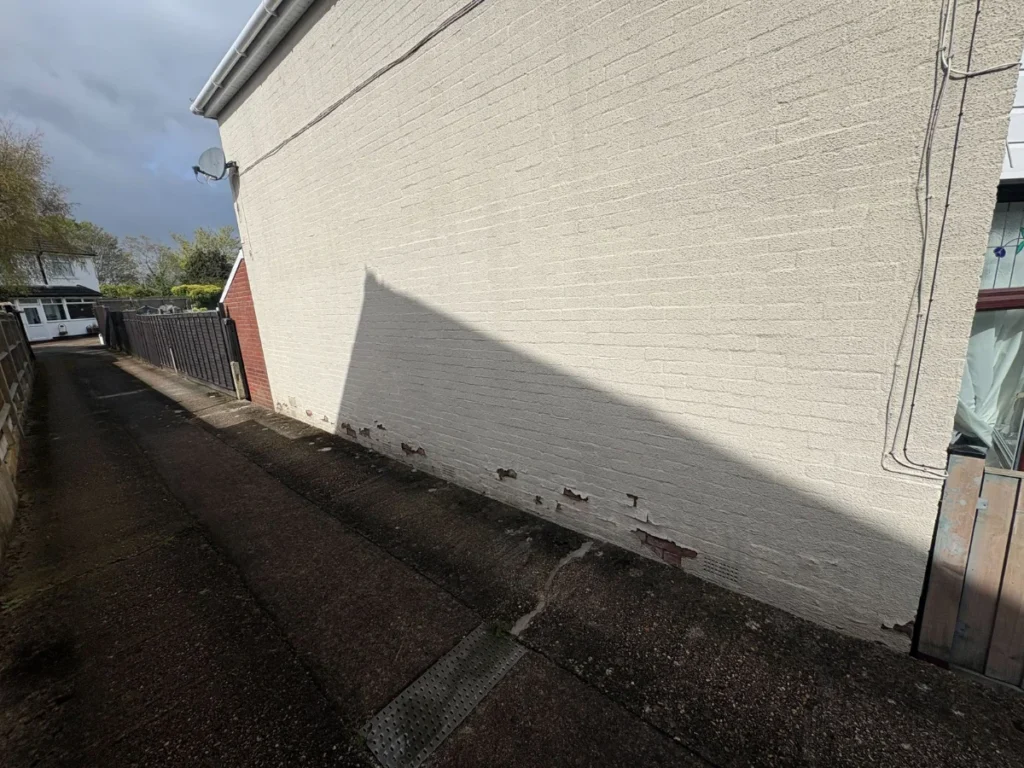

5. External Repointing and Masonry Protection Cream Application
All identified areas of failed, cracked, or missing pointing on the relevant external elevations were raked out and repointed with a suitable mortar mix, restoring the continuity of mortar joints and closing direct pathways for rain-driven water ingress into the wall. The external wall surfaces were then cleaned and prepared before Proofterior Masonry Protection Cream was applied by brush, roller, or low-pressure spray. The cream penetrates deeply into the masonry and cures to form an invisible, micro-porous barrier that repels liquid rainwater and dramatically reduces water absorption, while remaining vapour permeable to allow internal moisture to escape – supporting the performance of the internal damp proofing system by keeping the wall fabric significantly drier.
Treatment Outcome and Long-Term Protection Results
Before Treatment
- Active rising damp confirmed up to 1.5 metres in living room and kitchen walls
- Salt-contaminated and defective internal plaster across affected elevations
- Cavity bridging debris creating additional moisture pathways at low level
- Existing DPC failed or bridged along affected elevations
- Inadequate subfloor ventilation sustaining elevated moisture at the wall/floor junction
- Defective external pointing and porous masonry allowing rain-driven penetrating damp
After Proofterior Dry System and External Works
- New chemical DPC barrier installed, arresting capillary moisture rise at source
- Salt-contaminated plaster removed and masonry salt-neutralised throughout
- Cavity bridging cleared, eliminating the internal moisture bypass route
- DPM installed on critical sections, guaranteeing a dry internal face
- Air bricks upgraded, improving cross-flow ventilation and protecting suspended timber floors
- External repointing and masonry protection cream significantly reducing rain-driven water absorption
Following completion of both internal and external works, the walls will enter a drying-out phase during which residual moisture evaporates naturally. Adequate ventilation within the treated rooms supports this process.
Why Combined Rising and Penetrating Damp Is Common in Southampton Properties
Rising damp combined with penetrating damp is one of the most frequently encountered and most commonly mismanaged damp scenarios in Southampton and across Hampshire. Older cavity wall properties in the SO18 area are particularly susceptible because original damp proof courses deteriorate or become bridged over decades, external pointing fails and masonry becomes increasingly porous with age, and subfloor air brick positions that were correct at the time of construction can become obstructed or too low as external ground levels gradually rise around the property. When these three factors occur together, they create a compounding moisture problem that worsens over time and cannot be resolved by treating only one element. A professional damp survey in Southampton is essential to identify all moisture pathways correctly, because treating rising damp internally while leaving defective external masonry untreated will slow wall drying and undermine the long-term performance of the internal system.
Health Risks, Awaab's Law and Why Early Action Matters
Untreated rising damp and penetrating damp in an occupied home carries serious health and compliance implications, particularly in properties where persistent dampness creates conditions that actively support mould growth. Prolonged exposure to damp and mould can trigger breathing difficulties, worsen asthma, and disproportionately affect children, elderly occupants, and those with weakened immune systems. Under Awaab’s Law and the Housing Health and Safety Rating System (HHSRS), sustained damp and mould conditions can escalate into a Category 1 hazard, carrying legal obligations for landlords and serious risks for owner-occupiers.
Left untreated, ongoing moisture ingress at 124 Dimond Road would have led to chronic salt loading and recurring plaster failure, progressive risk of timber decay in skirting boards and suspended floor elements at the wall and floor junction, and persistent conditions conducive to mould proliferation and elevated indoor humidity. Early professional damp proofing in Southampton stops this cycle before structural and health risks escalate further.
Frequently Asked Questions About Bornemouth Damp Proofing
Will the Proofterior Dry System permanently solve the damp problem?
Yes. The Proofterior Dry System is a coordinated, evidence-led remedial solution carried out to PCA standards based on a thorough ISSE-accredited survey. By combining a new chemical DPC to arrest capillary moisture rise, cavity clearance to eliminate bridging pathways, salt neutralisation to remove hygroscopic contamination, and a DPM on critical sections to guarantee a dry internal face, the system addresses every identified moisture mechanism rather than masking visible symptoms. All works are backed by a 25-year Proofterior workmanship guarantee, with an optional third-party 30-year Biokil Crown backed guarantee available.
What is the difference between rising damp and penetrating damp?
Rising damp is groundwater drawn upward through porous masonry via capillary action, typically presenting as a band of moisture concentrated at low level up to approximately 1 to 1.5 metres from floor level, often with salt deposits and a tide mark. Penetrating damp is driven horizontally by rain through defective masonry, failed pointing, or porous brickwork, and can appear at any height on an external-facing wall following wet weather. In many Southampton properties, both occur simultaneously – a professional damp survey using calibrated moisture meters and expert assessment is essential to correctly identify which mechanisms are active and ensure the correct damp proofing treatment is specified.
Why does my newly plastered wall keep showing damp patches?
Recurring damp on replastered walls in Southampton properties is almost always caused by one of two things: the underlying moisture source was never treated, or salt-contaminated plaster was left in the wall before the new finish was applied. Hygroscopic salts carried into the wall by rising or penetrating damp remain embedded in the masonry even after the active water source is stopped, and they continue to attract atmospheric moisture, causing new plaster to appear persistently damp. This is why the Proofterior Dry System includes full hack-off of contaminated plaster, salt neutralisation of the exposed masonry, and a DPM on the most affected sections before any new finish is applied.
How long does rising damp treatment take to show results?
Following installation of the Proofterior Dry System, the new chemical DPC immediately interrupts the capillary moisture pathway, preventing further groundwater from rising into the wall fabric. However, residual moisture already within the wall will take time to evaporate naturally through the breathable new finishes. Walls typically stabilise over several weeks to a few months depending on wall thickness, masonry density, and seasonal ventilation conditions. Adequate airflow within the treated rooms supports the drying process, and the upgraded subfloor air bricks installed as part of this project also contribute to lowering moisture levels at the base of the wall during this period.
